龙迅LT7911系列产品:
1. Description
LT7911UXE is a high performance Type-C/DP1.4a or HD-DVI2.1 to MIPI or LVDS chip for VR/Display application.
HDCP RX as the upstream of HDCP repeater, can cooperate with HDCP TX of other chips to realize the repeater function.
For Type-C/DP1.4a input, LT7911UXE can be configured as 1/2/4 lanes. Adaptive equalization makes it suitable for long cable application and the maximum bandwidth up to 32.4Gbps.
For HD-DVI2.1 input, LT7911UXE can be configured as 3/4 lanes. Adaptive equalization makes it suitable for long cable application and the maximum bandwidth up to 40Gbps.
For MIPI output, LT7911UXE features configurable single-port or dual-port or quad-port MIPI®DSI/CSI with 1 high-speed clock lane and 1~4 high-speed data lanes operating at maximum 2.5Gbps/lane with D-PHY, which can support a total bandwidth of up to 40Gbps for four port. LT7911UX also support 5.7Gbps/lane with C-PHY, which can support a total bandwidth of up to 68.4Gbps for four port.
For LVDS output, LT7911UXE can be configured as single, dual or quad-port LVDS with 1 high-speed clock lane, and 3~5 high-speed data lanes, operating at maximum 1.2Gbps per lane, which can support a total bandwidth of up to 24Gbps. LT7911UXE supports flexible video data mapping path for 2D and 3D applications.
Two digital audio output interfaces are available I2S and SPDIF. The I2S interface supports 8-ch LPCM and the SPDIF interface supports 2-ch LPCM or compressed audio, both at maximum 192 KHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.
2. Features
• Type-C
• DP1.4a/eDP1.4b Receiver
• Four-Port MIPI® DSI/CSI Transmitter
• Four-Port LVDS Transmitter
• Digital Audio Output
• HD-DVI2.1 Receiver
• DSC Decoder and Encoder
3. Applications
• Mobile system
• Display
• VR
• Video conferencing

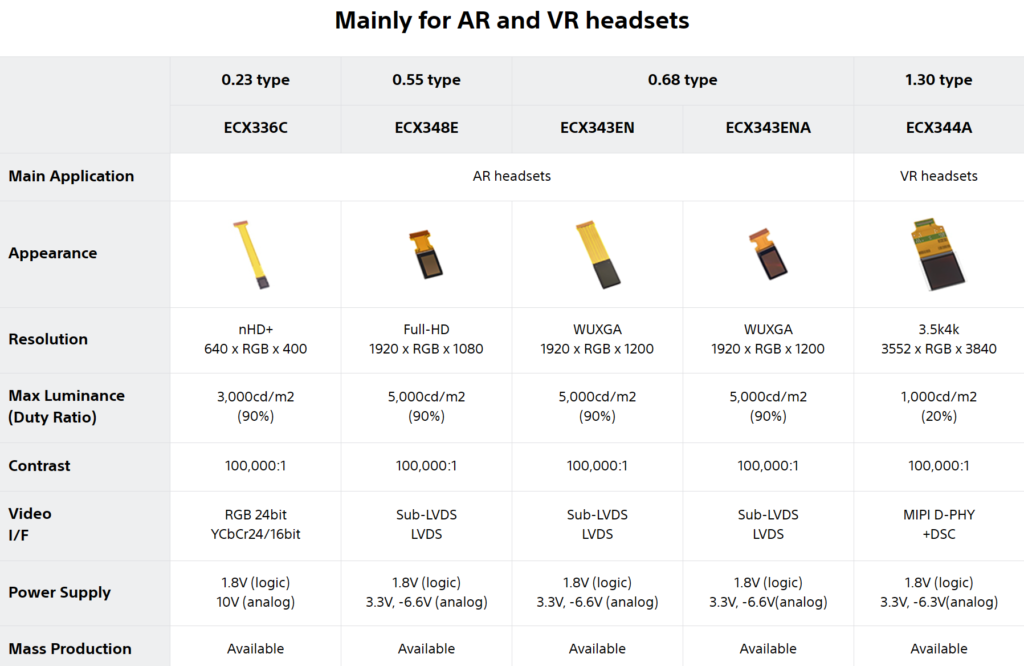

Mainly for AR and VR headsets 完美支持SONY ECX344A
![](https://www.zhuoxunweihong.com/wp-content/uploads/2024/04/image-1-1024x666.png)
