1. 描述
Lontium LT89101 是一款高性能 MIPI DSI/CSI-2 和 LVDS 中继器，用于汽车系统应用的移动显示或摄像头信号整形。
LT89101 采用先进的 CMOS 工艺制造，采用小外形 7.5mm x 7.5mm QFN64 封装。该封装符合 RoHS 标准，额定工作温度范围为 -40°C 至 +85°C.2
。特性
• 支持 3 位最大 10dB 输入均衡• 无需数据解包的信号再驱动• 输入和输出
每数据通道 80Mb/s~1.8Gb/s• 1.8V 单电源• 支持 100KHz I2C 从机
• 外部 48MHz ±100ppm 晶体参考时钟
• 温度范围：-40°C 至 +85°C
• 采用 QFN64 封装 7.5mm x 7.5mm
3.应用
• 移动系统• 蜂窝手机• 数码摄像机
• 数码相机
• 平板电脑、笔记本电脑
• 车载显示器和摄像系统
1. Description
The Lontium LT89101 is a high performance MIPI DSI/CSI-2 and LVDS repeater for mobile display or camera signal reshaping for car system application.
The LT89101 is fabricated in advanced CMOS process and implemented in a small outline 7.5mm x 7.5mm QFN64 package. This package is RoHS compliant and specified to operate from -40°C to +85°C.
2. Features
• Support 3-bit maximum 10dB Input Equalization
• Signal Re-driving without Data De-packetize
• 80Mb/s~1.8Gb/s per Data Lane for both Input and Output
• 1.8V Single Supply Power
• Support 100KHz I2C slave
• External 48MHz ±100ppm Crystal Reference Clock
• Temperature Range: -40°C to +85°C
• Packaged in QFN64 7.5mm x 7.5mm
3. Applications
• Mobile systems
• Cellular handsets
• Digital video cameras
• Digital still cameras
• Tablet PC, Notebook PC

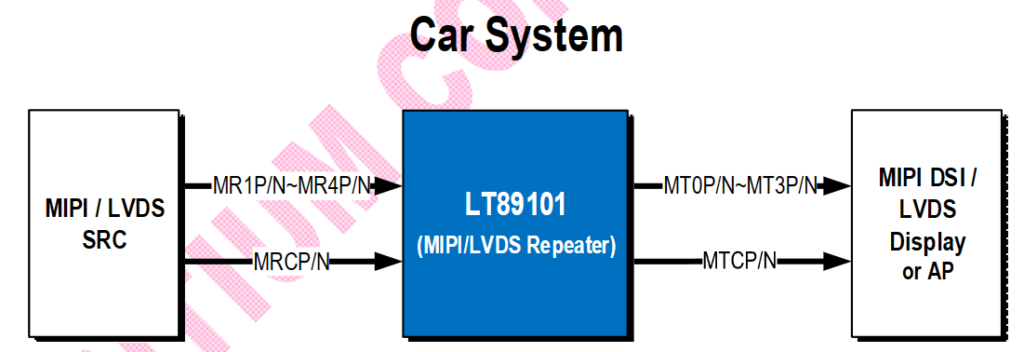

• Car Display and Camera System
